Knee Rollator-602

Product Configuration:

1.2mm thick aluminum alloy matte silver oxide material; Interactive framework; Height adjustable in 8 levels; Foldable storage; Wheeled product load-bearing capacity: 100kg unfolded size: L53 × W46 × H75cm.

MAINTENANCE

1. The  exterior  of  this rollator  walker  should  be  cleaned  periodically  with  a  soft  damp cloth.Do  not  use  abrasive  cleaners  or  caustic  chemicals.
2. 2.Check  the  parts  for  any   looseness,wear,or  damage   periodically.If  any   problems  are found,correct  them  before  using  them.
3. Ifhaven’t  used  it  for along time,store  it  in  a  cool,dry,and  safe  place.

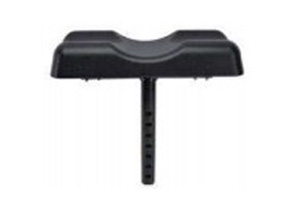

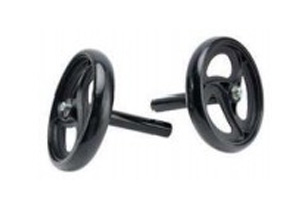

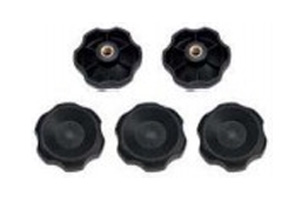

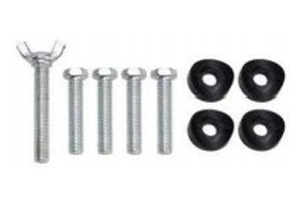

PART LIST

ASSEMBLY INSTRUCTIONS

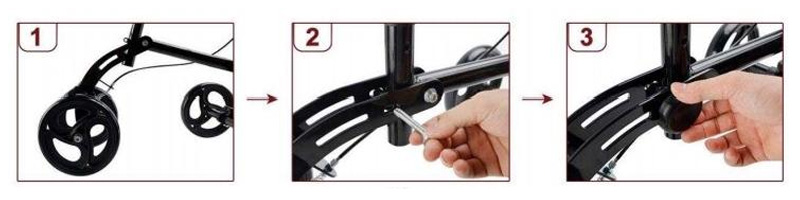

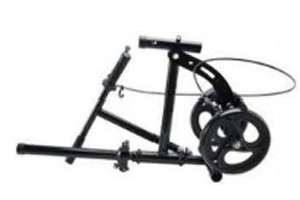

1. FOLDING DEVELOPMENT

   1. Take out the body and open the folded rear wheel

   2. Fix the rear wheel frame with screws



2. HEAD POST ERECTION

   1 .Open the mainframe and lock the lever

   2 .If you find the frame is unsteady,please tighten the screw

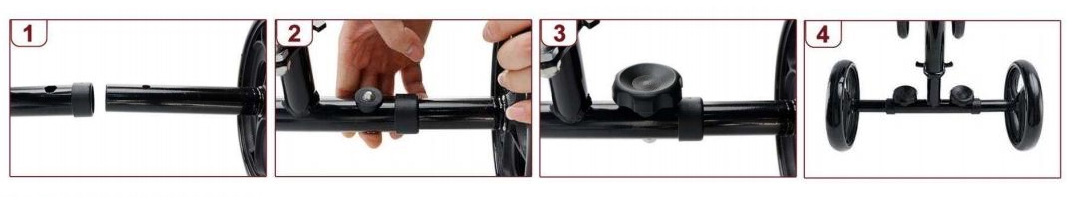

3. WHEEL MOUNTING

   1.Insert the front wheels into the mainframe and make sure the holes are aligned

   2 .Insert the screw into the hole and secure the“star bolt”

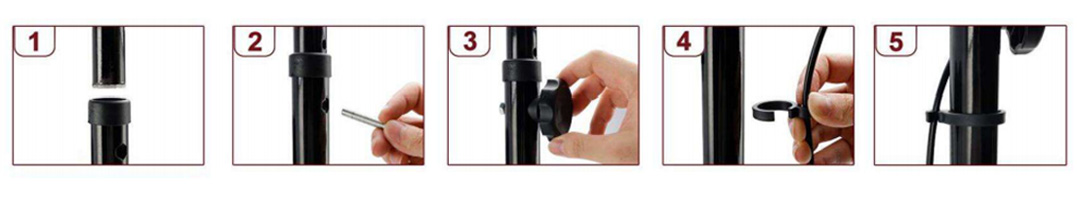

4. HANDLEBAR INSTALLATION

   1 .Insert the lifting lever into the mainframe

   2 . Adjusting the suitable height,then make sure the holes are aligned

   3 .Insert the star bolt into the hole and tighten it

   4 . Attach the card buckle to the lifting rod

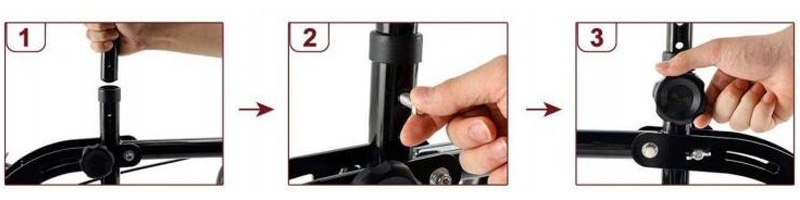

5. KNEE PAD INSTALLATION1. Insert the knee pad into the tube
   2. Adjusting the suitable height,then make sure the holes are aligned
   3. Insert the screw into the hole and secure the star bolt
