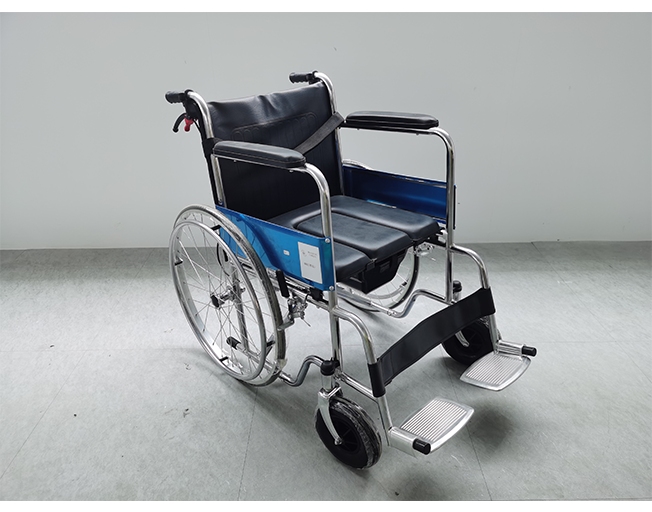

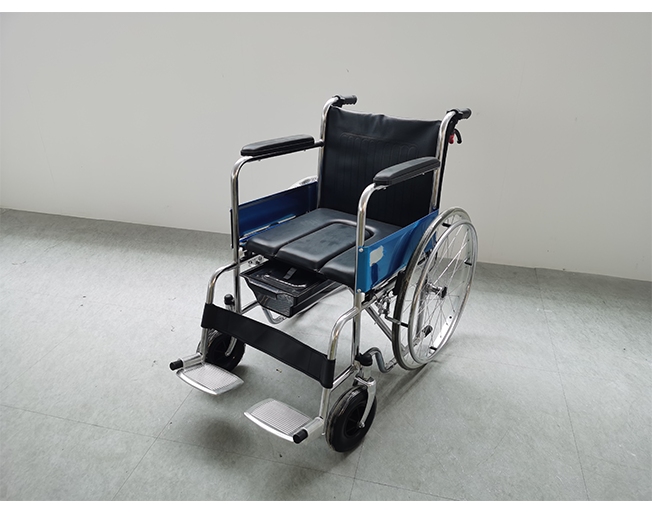

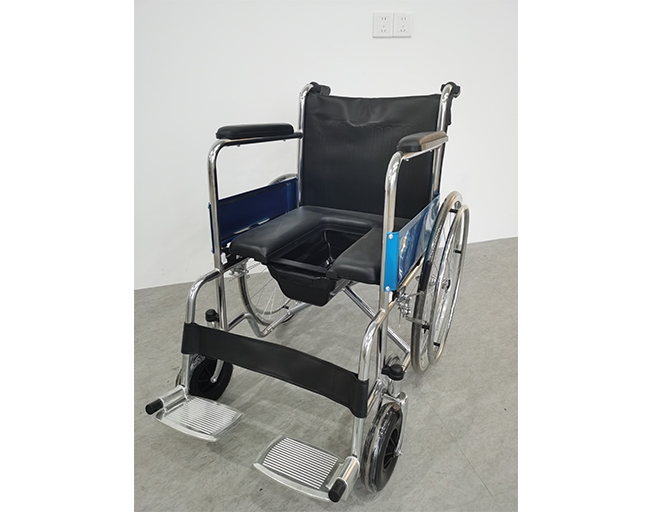

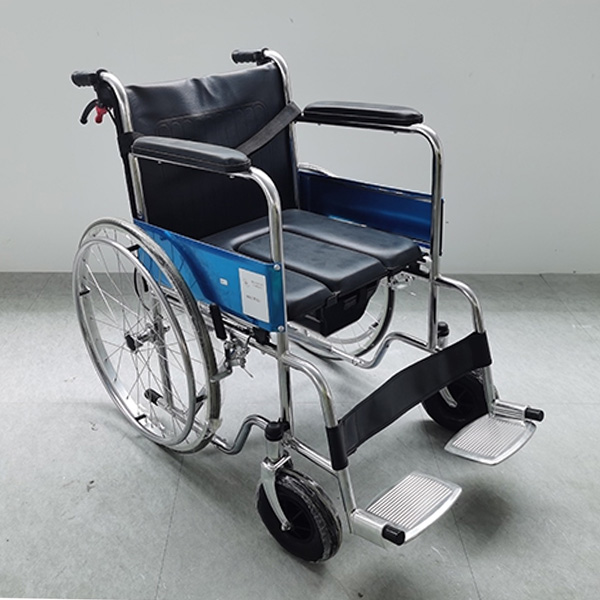

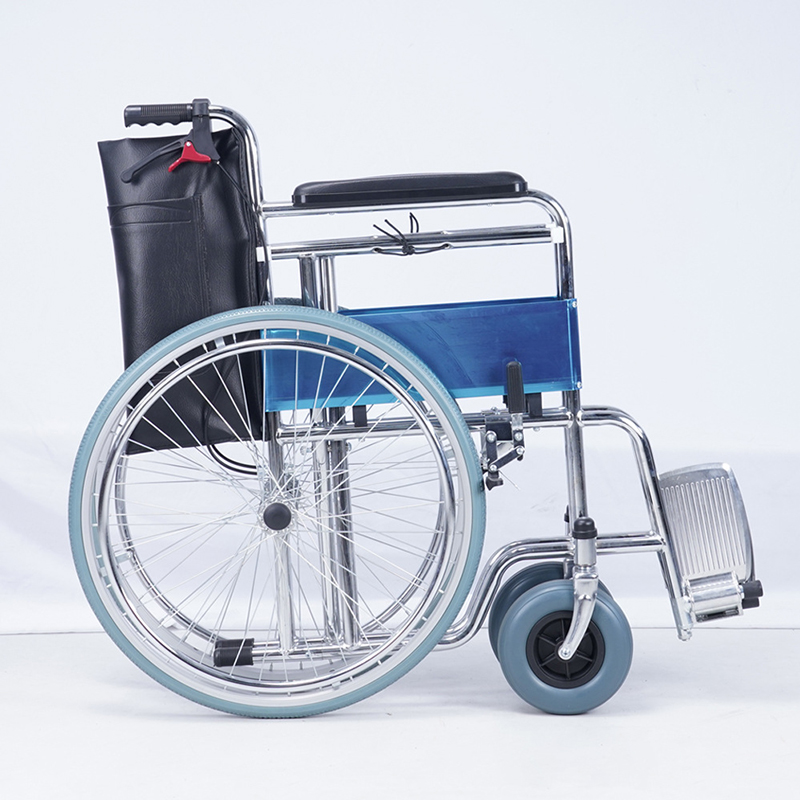

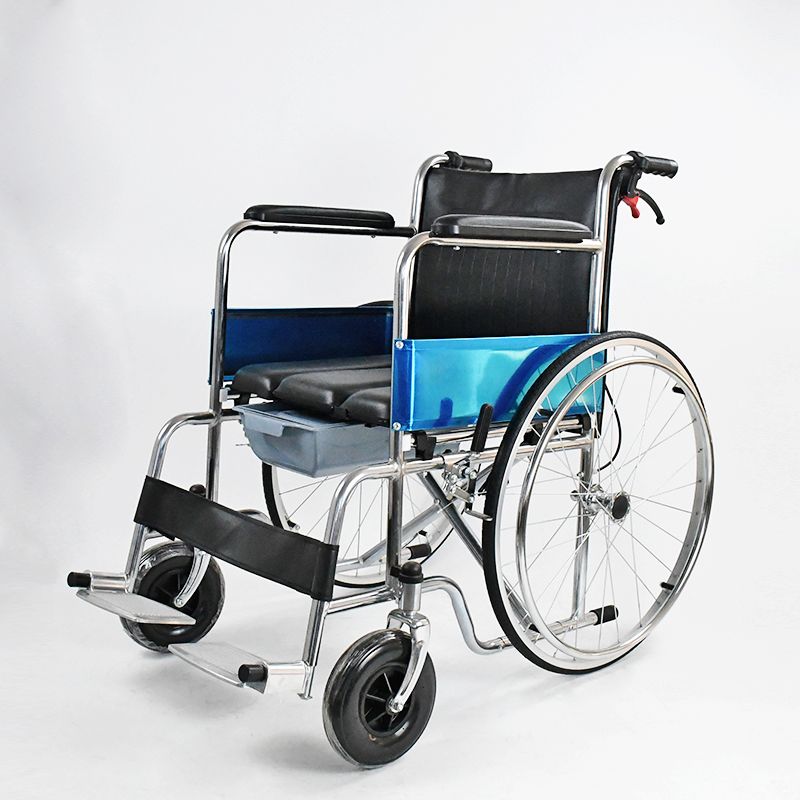

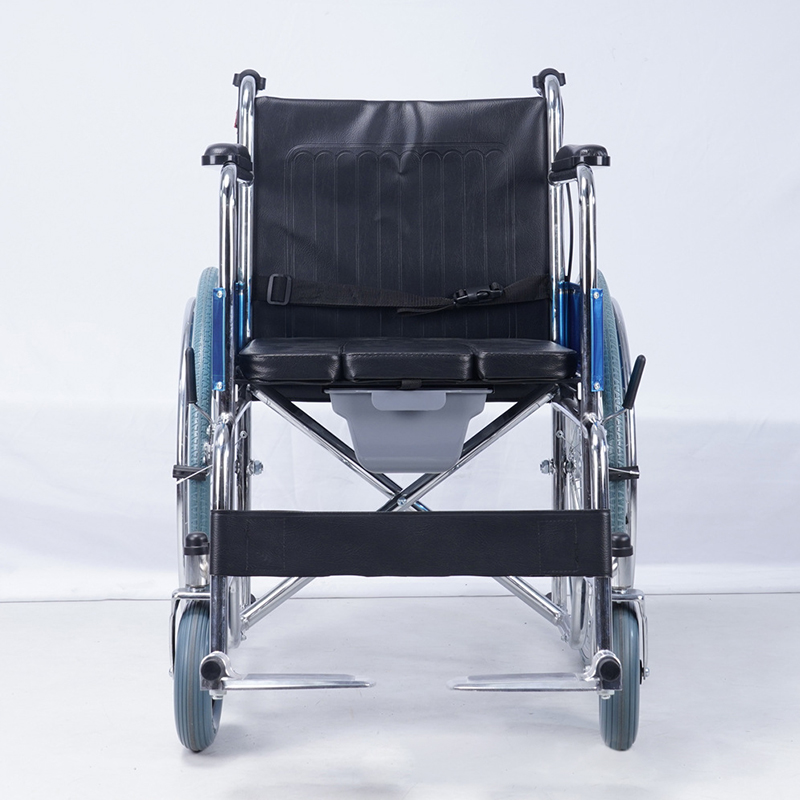

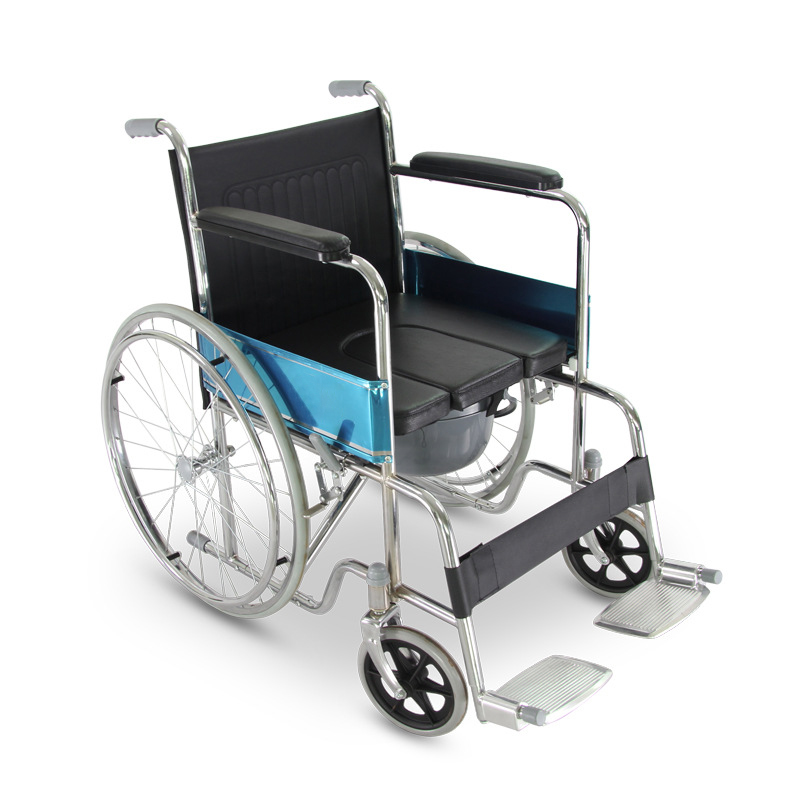

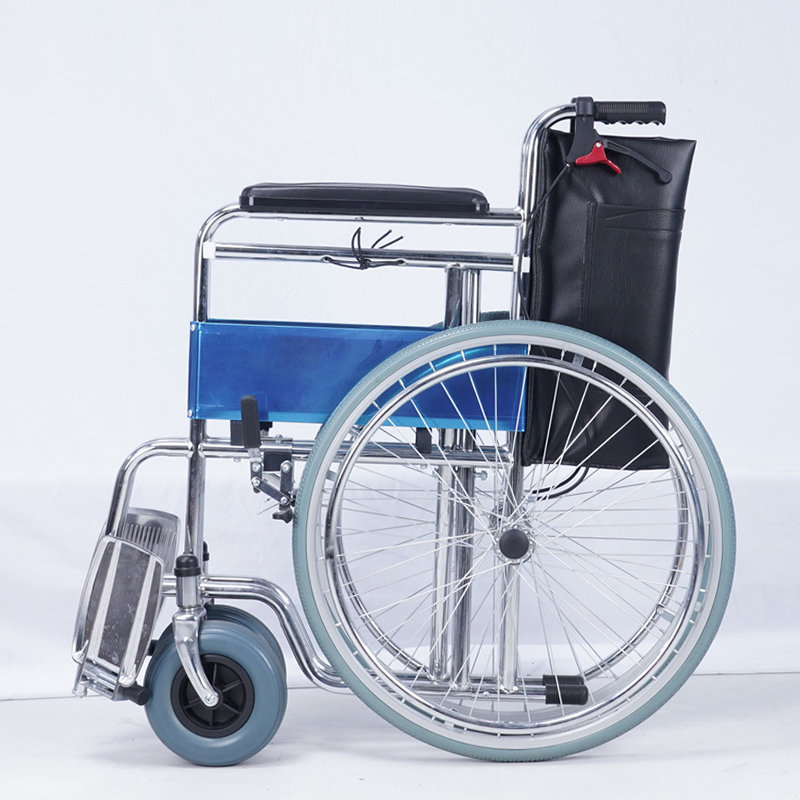

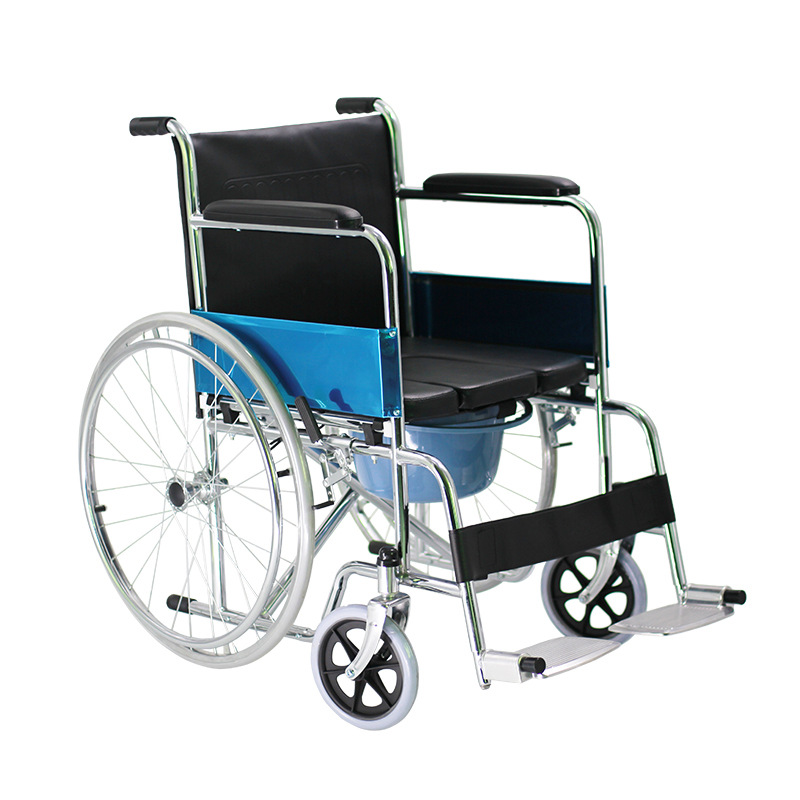

XY-608J

Main Technical Parameters：

Name	Parameter
Total length	102cm
Total width	64cm
Total height	88cm
Fold length	104cm
Fold width	23cm
Fold  height	87cm
Backrest height	44cm
Seat width	46cm
Seat depth	44cm
The height of  the seat from the ground	50cm
Wheels/Spokes	Article 28 of 14#
Material quality	A3 steel
Diameter	Φ22
Thickness of  pipe	1.2T
Maximum load	100kg
Net weight/Gross weight	20.4/22.4kg
Packaging size (L*W*H)	92*28*87cm

Configure ：

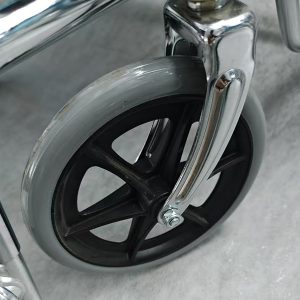

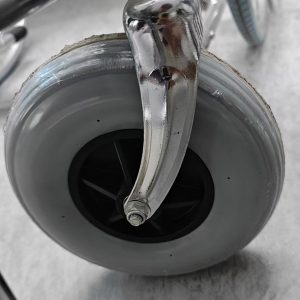

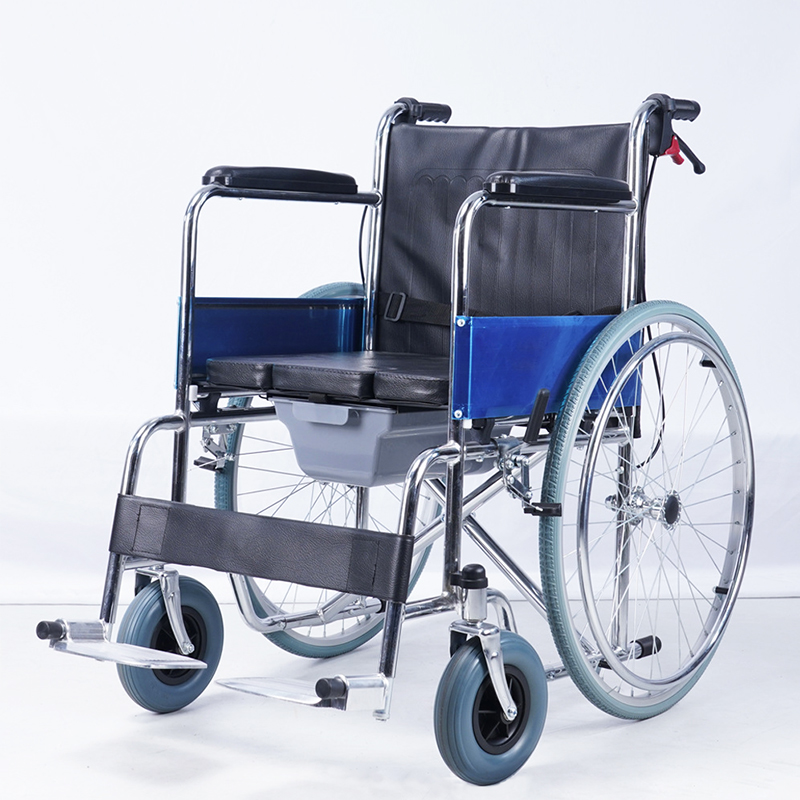

Front wheel	Standard 8-inch PVC, solid wheel Optional: Gray/black 8-inch fat wheel

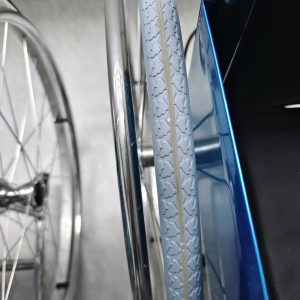

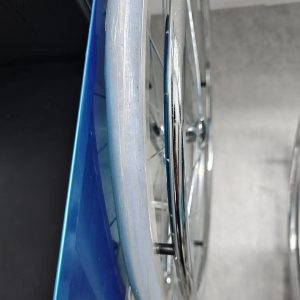

Back wheel	Standard solid wheels Optional: pattern solid wheel

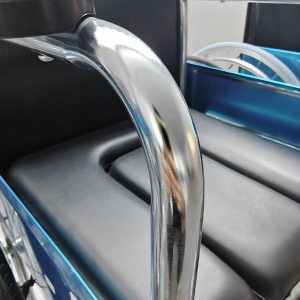

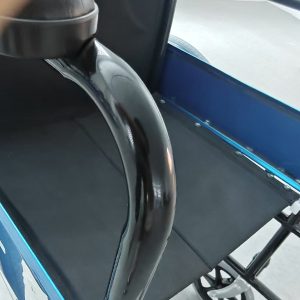

Frame color	Standard: electroplating optional: black spray paint

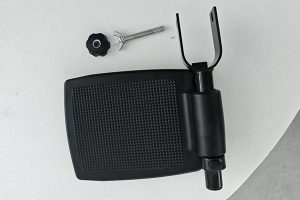

Pedal	Standard: high strength plastic Optional: aluminum alloy pedal

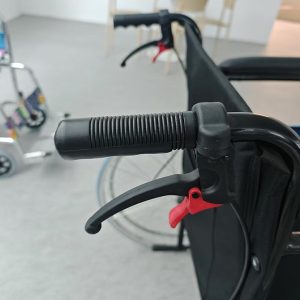

Braking function	Standard: Ordinary grip（No handbrake） + toggle brake  Optional: devicerear brake（Grip type brake device）+ toggle brake

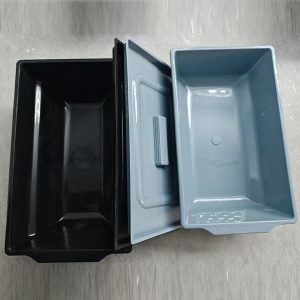

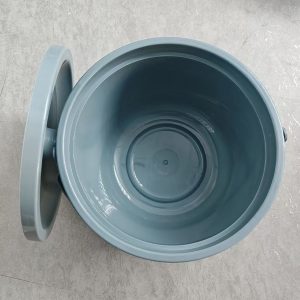

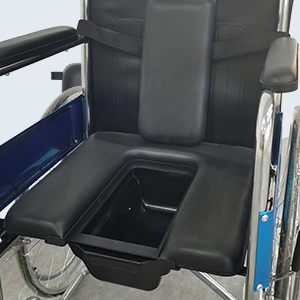

Square toilet bowl	Standard: Square toilet bowl Optional: Round Commode Bucket Color Options: Black/gray

cushion

Removable U-shaped sponge thickened cushion

Core Target Users:

• The elderly

• Patients in rehabilitation

• Individuals with lower limb weakness

• Pregnant women

• People with limited mobility

Primary Usage Scenarios:

• Hospitals, nursing homes, and rehabilitation centers

• Indoor use (e.g., bedrooms, bathrooms)

• Outdoor walks and transportation

Product features and advantages

• Main Frame: Made of high-strength A3 steel with a electroplated surface, it is sturdy, durable, and offers strong load-bearing capacity.

• Fixed Armrests: The armrest pads use high-quality PVC soft cushion cores, providing anti-slip comfort and support; a tray can be attached.

• Backrest Frame: Ergonomically designed according to the physiological curvature of the human waist, providing optimal support.

• Backrest Cushion: Made of synthetic leather, it is waterproof, easy to clean, soft, smooth, aesthetically pleasing, and has high tensile strength.

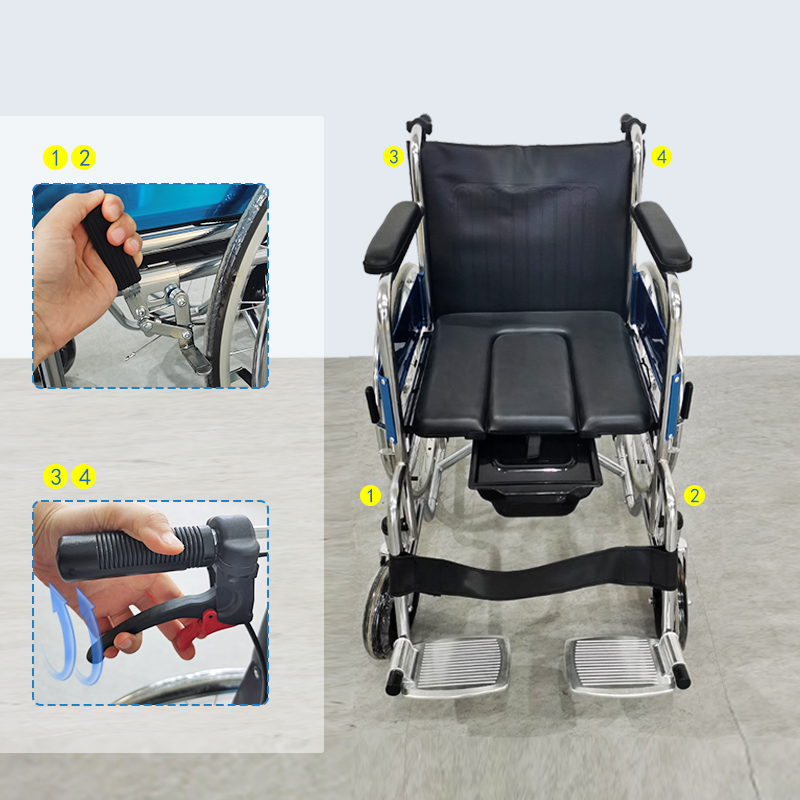

• Braking Function: ① Handlebar brake mechanism ② Toggle-type brake mechanism. The brake mechanisms sit below the seat level after engagement, ensuring convenience and safety.

• Frame Structure: Features a cross-type support frame with a triangular structure, providing stable seating and convenient folding.

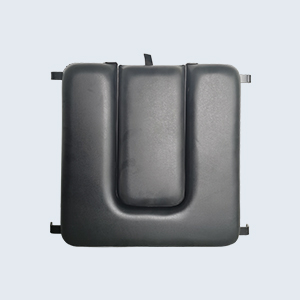

• Seat Cushion: Removable U-shaped sponge toilet seat board with a leather surface, waterproof and easy to clean.

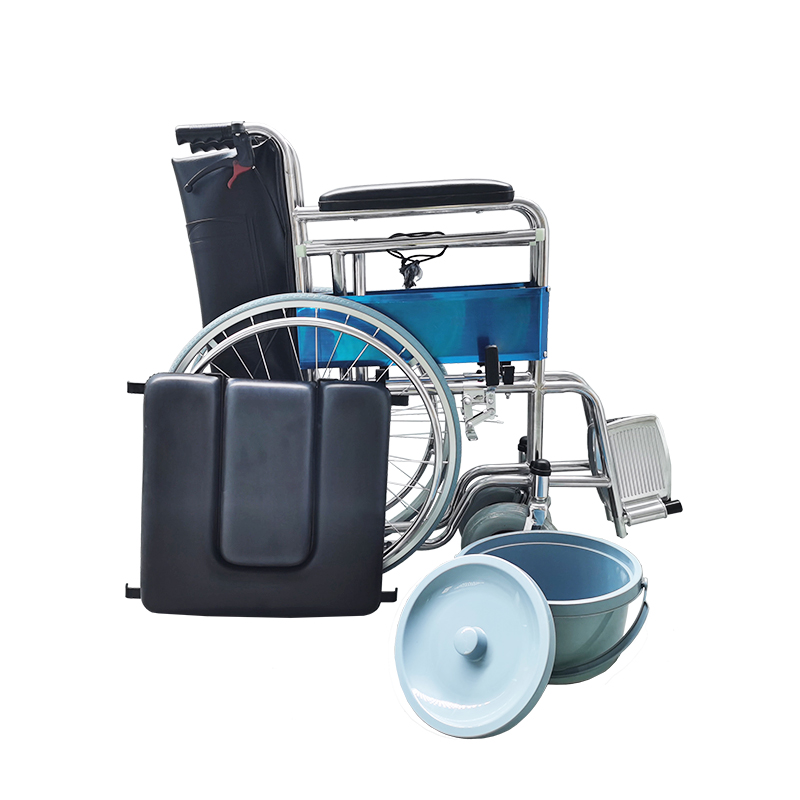

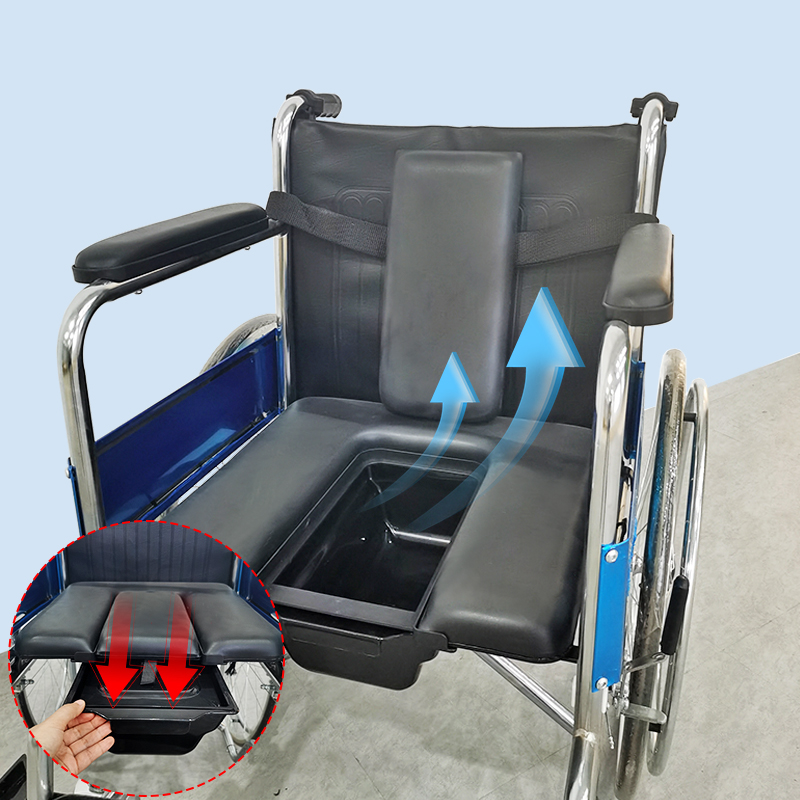

• Toileting Function: Use the pull-out commode potty or simply lift the seat cushion; includes a large-capacity commode potty.

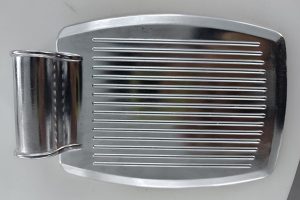

• Aluminum Alloy Footrests: Foldable for storage, equipped with foot straps.

• Front Wheels: 8-inch PVC 360° swivel solid wheels, offering flexible steering for easier turning.

• Rear Wheels: 24-inch air-free solid wheels, easily handling various road surfaces, puncture-proof and burst-proof.

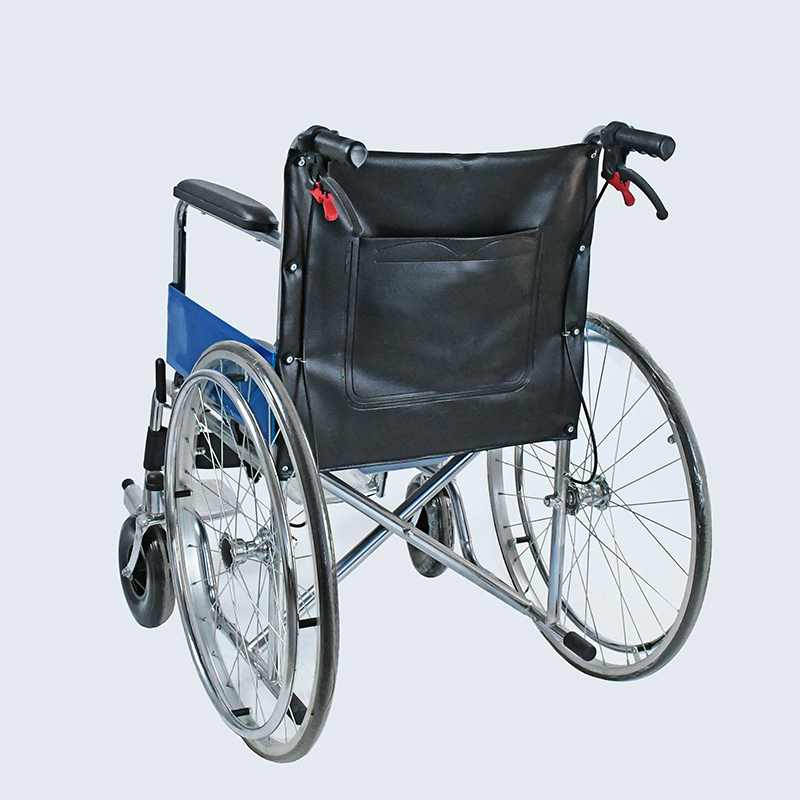

• Storage Bag: A storage bag is located behind the wheelchair backrest cushion, convenient for carrying small items during outings.

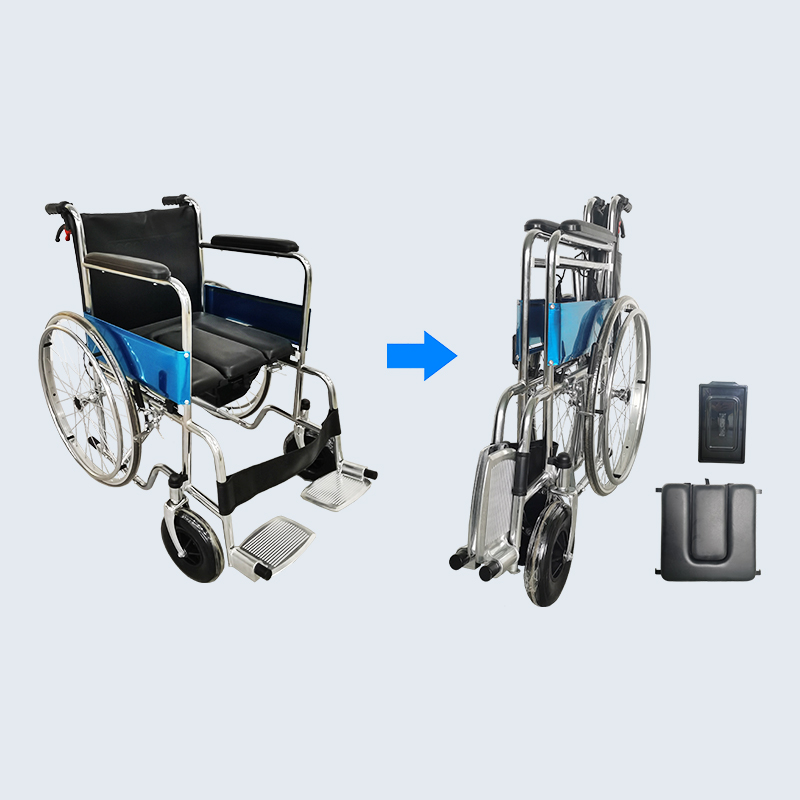

• Folding for Storage: The entire chair folds compactly, saving space and making it easy to carry when going out.
